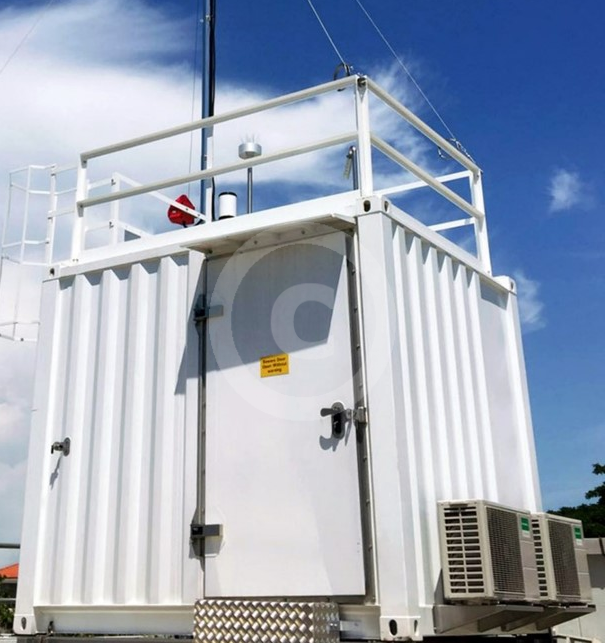

Station Type-A housed in fully equipped shelter 10'
Highlights
Equipped Shelter, made of:
Container
Dimensions:                External W x H X L = 244 x 259 x 299 cm
Weight:                      1,500 kg, bare shelter without equipment.
Construction:              Main structure in steel, side panels in Corten steel, door  panels in stainless steel.
                                All external surfaces, walls, door and roof surfaces coated with same paint.
Thermal insulation:     Polyurethane, thickness 40 mm.
Surface treatments:    All metallic parts sand blasted grade SA2.5
Paint:                         Paint cycle with Hempel Marine paints.
Under floor:                Protective layer Tectyl 121 LV, thickness 300 microns.
Class:                        IP 65.  EMC shielding 60 dB from 30 kHz up to 1 GHz
Standard:                   ISO 1496-1.
Conditioning:              Two redundant AC Split systems.
UPS 5 kVA
Type:                         APC Smart-UPS SRT 5000 VA 230 V
Input Voltage:            AC 230 V, mono phase
Output Voltage:          AC 230 V ± 3% - 50/60 Hz
Power Capacity:         4500 Watt / 5000 VA
Efficiency:                  98%
UPS Technology:         on-line
Output Waveform:      sine wave

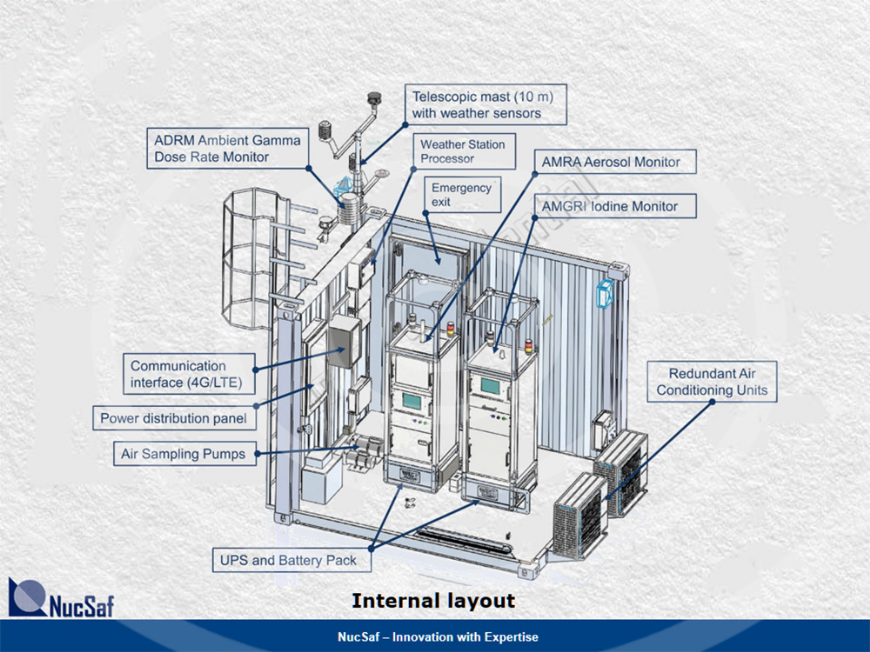

Auxiliary components
Features:
  • Interface with integrated weather station.
  • Anti-intrusion sensor at door (open – closed).
  • 1 x Smoke detector.
  • 1 x Fire extinguisher.
  • Internal room temperature sensor.
  • Internal room humidity sensor.
  • Automatic emergency power switch-off.
  • Internal power distribution wiring in accordance to applicable IEC standards.
  • Internal power distribution switchboard with automatic circuit- breakers.
  • High voltage surges and lightning protection devices.
  • Standard and emergency lighting system in accordance to applicable IEC standards (TÜV-Sud).
  • Electrical grounding system in accordance to applicable IEC standards.
  • Sampling head PM10 and heated air inlet conduit for aerosols monitor.
  • Sampling head PM10 and heated air inlet conduit for Iodine monitor.
  • One retractable ladder and one aluminium 3-step ladder for personnel to carry out maintenance works.

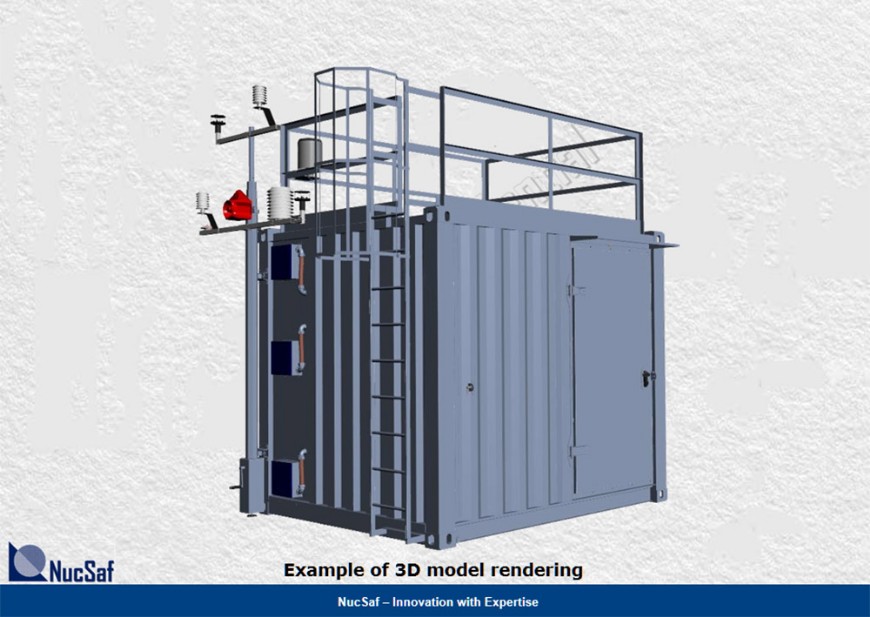

Solid Works 3D Model rendering

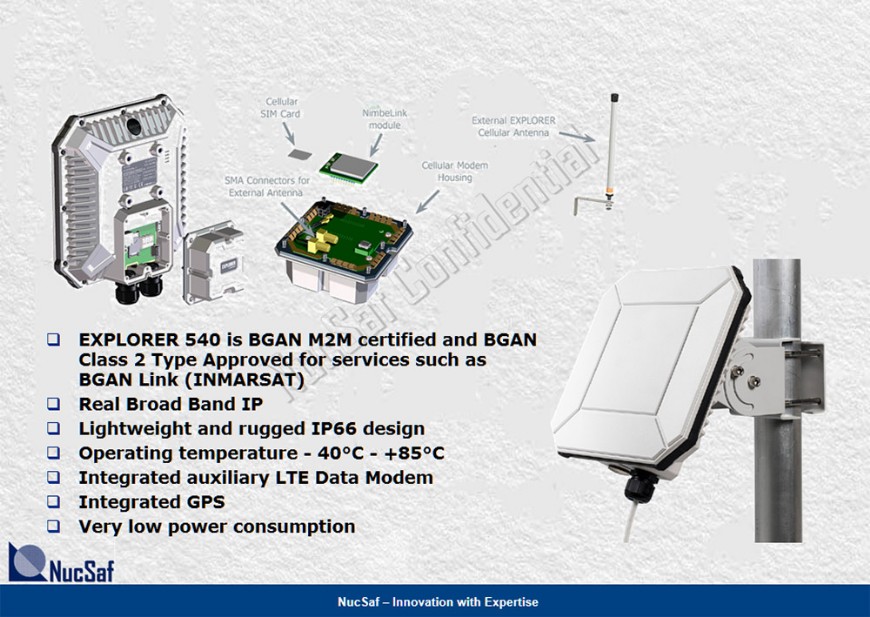

INMARSAT Satellite Data modem with 4G/LTE backup
