AMRA-Sr Ng® is the State of the Art among Aerosols Monitors. New advanced mechanical design solutions, Artificial Intelligence applied to spectra analysis and use of newest state of the art electronics allow superior performances of the Alpha/Beta and Gamma spectrometric measurement chains.
It is a budget friendly alternative to its higher performance version AMRA-Ge Ng® equipped with electrically cooled HPGe detector.
Thanks to the superior characteristics of its detector, the Gamma MCA is set-up for 4k channels, twice the number of channels normally usable with less performing scintillation detectors.
The innovative unique use of a crystal with very low intrinsic background and very high photonic yield makes possible at a reasonable cost the implementation of an industrial grade equipment with laboratory grade analytical performances on-line.
Technical highlights
Main operational functions:
- Filter control (Δp, air inlet temperature, filters changing)
- Flow-rate control and measurement
- Live spectrum acquisition

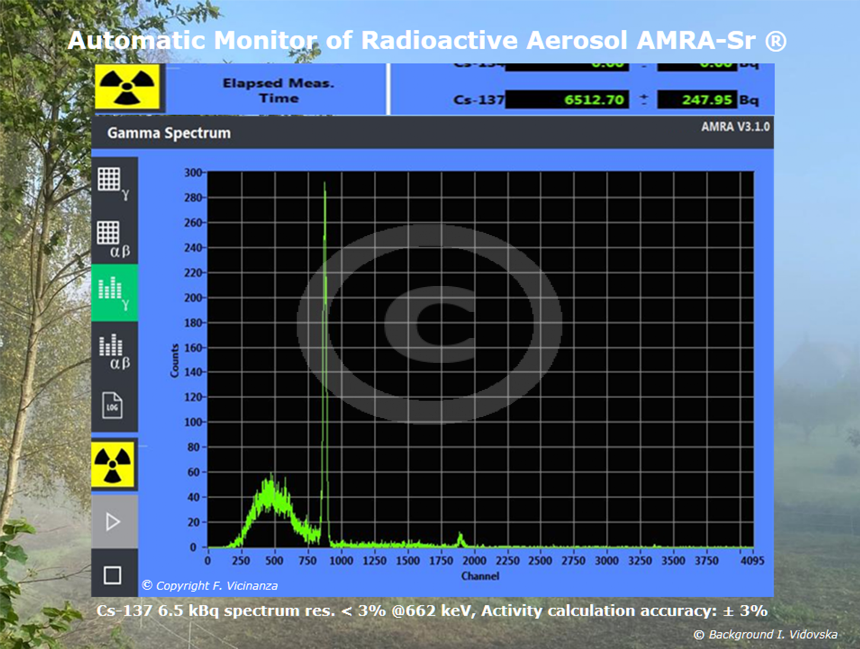

- On-line Spectra analysis and readout
- Gamma background compensation
- Evaluation of activities on filter and concentrations in air
- System parameters set-up
- Two programmable thresholds (alert and alarm)
- Intrinsic automatic control of system operation
- Built in test procedures
- Data communication LAN, 4G/LTE, 5G, option Satellite
- GUI languages: English standard, Spanish selectable, Russian option
Parameters set-up:
- Station identifier: identifier of the station
- Flow Rate: sampling flow-rate (X.XX m3/h)
- Sampling Time: total sampling time (ST) for each filter
- Data period: data files issuing period
- Alpha Alert: alert trip point for alpha concentration
- Beta Alert: alert trip point for beta concentration
- Alpha Alarm: alarm trip point for alpha concentration
- Beta Alarm: alarm trip point for beta concentration
- Gamma ROI Alert: ten ROI independent trip point set-up
- Gamma ROI Alarm: ten ROI independent trip point set-up
- Flow Alarm: flow-rate trip point for ‘low flow’ (X.XX m3/h).
- Flow Filter: flow-rate trip point for filter change (X.XX m3/h).
- MCAs set-up: coarse gain, fine gain, shaping, threshold, HV
- Network: IP address, firewall, time synchronization
Data display
Programmed Parameters:
- Flow-rate (m3/h)
- Sampling time (h, min)
- Data period (min)
- Measuring time (h, min)
Actual values:
- Flow-rate (m3/h)
- Normalized Flow-rate (m3/h) @ 25°C
- Filter (actual filter number)
- Measurement (actual measurement number)
- Step (actual step number)
- Sampled volume (m3)
- Normalized volume (m3)
- Dp (mbar - pressure drop through the filter)
- Airinlet temperature (°C )
- Measuring time (h, min)
- Sampling time (h, min)
Status Information:
- Failure: description / code of failure if any
Measurement data:
- Alpha artificial concentration (Bq/m3) ± statistical uncertainty
- Beta artificial concentration (Bq/m3) ± statistical uncertainty
- Alpha alert threshold (Bq/m3)
- Alpha alarm threshold (Bq/m3)
- Visual alert and/or alarm for Alpha thresholds
- Beta alert threshold (Bq/m3)
- Beta alarm threshold (Bq/m3)
- Visual alert and/or alarm for b thresholds
- Alpha Total (Bq) ± statistical uncertainty
- Beta Total (Bq) ± statistical uncertainty
- Radon concentration (Bq/m3) ± statistical uncertainty
- Thoron concentration (Bq/m3) ± statistical uncertainty
- Full α / β spectra (1k)
- ROI gamma concentration (Bq/m3) ± statistical uncertainty (10 ROI)
- ROI gamma activity on filter (Bq) ± statistical uncertainty (10 ROI)
- Full gamma spectra (4k)
- Data format selectable: ANSI 42.42 / EURDEP 2.1 / IRIX
