AMGRI®

Automatic Monitor of Radioactive Gaseous Iodine

AMGRI® is the State of the Art among Iodine Monitors, in terms of advanced design solutions and performances of the Gamma spectrometric measurement chain and cartridges changer mechanics.

It has the same functional and mechanical construction of the AMRA-Sr® Aerosols Monitor; both equipment utilize the same gamma digital MCA.



In this application, thanks to the superior characteristics of its detector, the MCA is set-up for 4k channels, twice the number of channels normally usable with less performing scintillation detectors, same as for AMRA-Sr®.



The innovative unique use of a crystal with very low intrinsic background and very high photonic yield makes possible at a reasonable cost the implementation of an industrial grade equipment with laboratory grade performances on-line.

Technical highlights



Main operational functions

• Cartridge control (Δp, inlet air temperature, cartridges changing)
• Automatic cartridge changer, capacity up to 14 cartridges in one load
• Flow-rate control and measurement
• Live spectrum acquisition
• On-line Spectra analysis and readout
• Pb-214 peak automatic compensation
• Evaluation of Iodine concentration in air
• System parameters set-up
• Two programmable thresholds (alert and alarm)
• Intrinsic automatic control of system operation
• Built in test procedures
• Data communication LAN, 4G/LTE, option Satellite, 5G
• GUI languages: English standard, Spanish selectable, Russian option



Parameters set-up



• Station identifier:                   identifier of the station
• Sampling Time:                      total sampling time (ST) for cartridge (h, min)
• Data period:                          data files issuing period
• Iodine Alert Threshold:           alert trip point for Iodine concentration
• Iodine Alarm Threshold:         alarm trip point for Iodine concentration
• Flow Alarm Threshold:            flow-rate trip point for ‘low flow’ alarm (X.XX m3/h).
• Flow Filter Threshold:             flow-rate trip point for filter change (X.XX m3/h).
• MCAs set-up:                         coarse gain, fine gain, shaping, threshold, HV
• Network:                               IP address, firewall, time synchronization

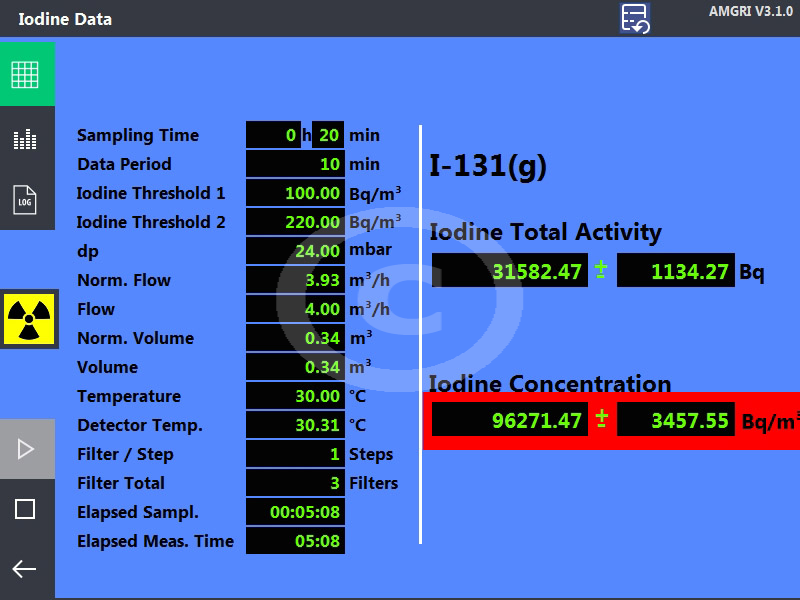

Data display



Programmed Parameters:

• Flow-rate (m³/h)
• Sampling time (h, min)
• Data period (min)
• Measuring time (h, min)



Actual values:

• Flow-rate (m3/h)
• Normalized Flow-rate (m3/h) (@ 25°C)
• Cartridge (actual cartridge number)
• Step (actual step number)
• Sampled volume (m3)
• Normalized sampled volume (m3) (@ 25°C)
• Dp (mbar - pressure drop through the cartridge)
• Inlet Air temperature (°C)
• Sampling time (h, min)
• Elapsed time (h, min)

Status Information

• Failure, description/code of failure if any

Measurement data

• Iodine concentration in air (Bq/m3) ± statistical uncertainty
• Iodine activity on cartridge (Bq) ± statistical uncertainty
• Iodine alert threshold (Bq/m3)
• Iodine alarm threshold (Bq/m3)
• Visual/acoustic alert and/or alarm for Iodine thresholds

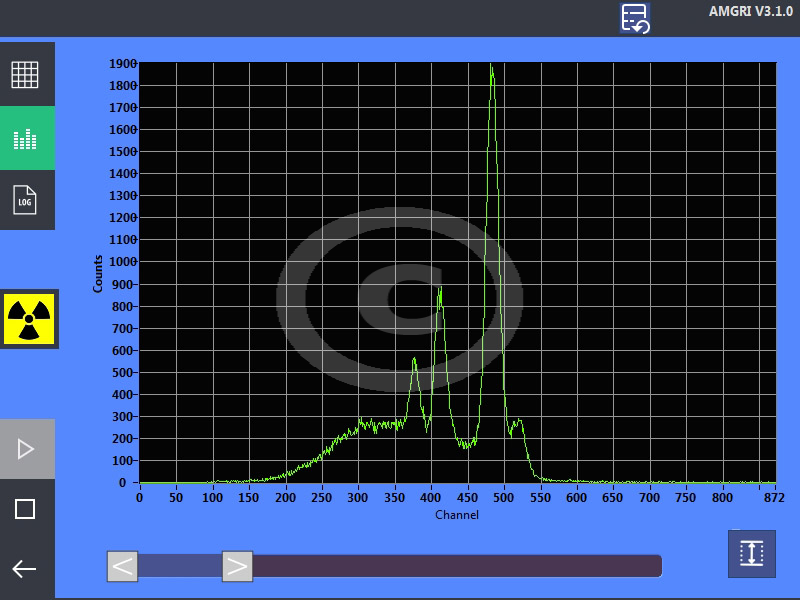

• Spectra visualisation on-line
• Data format selectable: ANSI 42.42 / EURDEP 2.1 / IRIX
